Gear Driven Flue Gas Desulphurization System FGD Mixers Side Entry Agitators

FOB Reference Price:Get Latest Price
US $850-10,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Agitator
Product Type:
Power Plant
Application:
Liquid with Suspended Solids
Additional Capabilities:
Other
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
AAA
Model Number:
CFJ
Max. Loading Capacity:
Customized
Voltage:
220V/380v/415V/440V
Power(W):
~90KW(120HP)
Dimension(L*W*H):
Customized
Certification:
CE, ATEX, ISO9001, ISO14001 and OHSAS18001
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Output Speed:
170~350rpm
Mechanical Seal:
261Single face(SIC-SIC)
Impeller Type:
Per Design
Wetted Part Material:
304,316L ,C.S or Custom Made
Gear Type:
Spiral Bevel Gears
Impeller Diameter:
According to Calculation
Shaft Length:
According to Design Requirem
Paint Brand:
JOTUN or Specified Brand
Color:
Leaf Green RAL 602 or Custome made
SupplyAbility
SupplyAbility:
10000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wooden Crate
Port
Shanghai Port or Ningbo Port
Lead Time :
30days
Product Description

 Established in the year 1992, we are a prominent manufacturer and exporter of a wide range of FGD Flue Gas Desulphurization System Mixers and Agitators We offer our agitators in different models depending on application, volume, viscosity and specific gravity of materials. We offer our mixers to our clients at market leading prices.

Main Parameters

FGD Flue Gas Desulphurization System Mixers and Agitators.png

Schematic

FGD Flue Gas Desulphurization System Mixers and Agitators1.png



Main Feature

YThe Right-Angle configuration of CFJ  FGD Flue Gas Desulphurization System Mixers and Agitators  minimizes overhung shaft load and reduces nozzle reinforcement requirements in addition to taking much less space. A structural support leg(below the motor) is available for large sizes and tie-rods can be supplied for smaller sizes.



CFJ  FGD Flue Gas Desulphurization System Mixers and Agitators  use standard electric motors ranging from 1 to 75 Hp. Replacement motors are readily available from most motor manufacturers and suppliers.

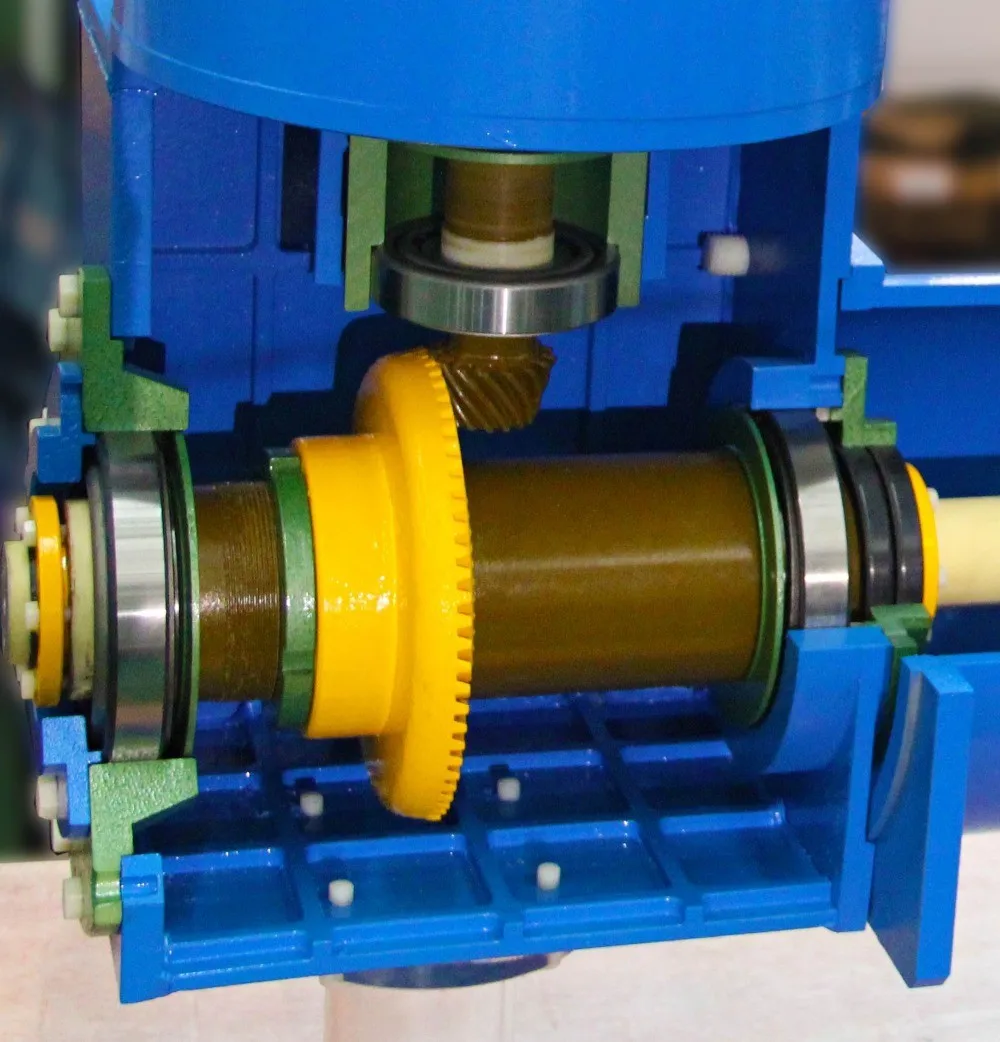

CFJ  FGD Flue Gas Desulphurization System Mixers and Agitators  drives utilize hardened spiral bevel gearing intended for heavy duty applications. All gears are inspected to AGMA Quality 8 to 10 levels.



  FGD Flue Gas Desulphurization System Mixers and Agitators13.jpg



Shaft seals for all CFJ  FGD Flue Gas Desulphurization System Mixers and Agitators are designed for long life and easy maintenance. It is specially designed for sealing against abrasive products and is used for flooded side entering applications. The seal rings use highly wear-resistant material silicon carbide, which are surrounded, lubricated and cooled by the product. A positive seal shut-off system is standard for all configurations. This feature permits seal maintenance even with a full tank.

             FGD Flue Gas Desulphurization System Mixers and Agitators14 261 Mechanical Seal



The specially designed high efficiency hydrofoil impeller, KCX or ZCX, combines the desirable performance of marine propellers and turbine impellers. It had been optimized by lots of CFD simulations.







                           ZCX                                                                                                KCX



Research&Development

Powder Application and Agitator Mixer Type agitator mixer reserch.pngPowder Application and Agitator Mixer Type agitator mixer research.pngPowder Application and Agitator Mixer Type agitator mixer research3.png

Facility

Viscous Fluid Application and Milling Additional Capabilities Inline mixers Facility.png

Our Services

INSTALLATION

GREATWALL provide expert help on installation,whether your application requires a single agitator or a group of agitators for an entire plant.Our engineer can quickly and efficiently supervise the installation.

Viscous Fluid Application and Milling Additional Capabilities Inline mixers impeller Installation.png

MAINTENANCE

The agitator users manuals will provide detailed maintenance specification.Please read them carefully and comply with each item.GREATWALL will distribute maintenance communications periodically,which will thoroughly review procedure recommendations for installation,operation,and maintenance of the agitators.

Viscous Fluid Application and Milling Additional Capabilities Inline mixers impeller Maint.png

SPARE PARTS

Our paers program includes individual recommendations and review of your spare parts stoc,based on your equipment and process.Our large inventory supports your stock,and provides quick fulfillment of maintenance and repair needs,including standard replacement items such as seals,bearings,and lots of internal subassembles.

Viscous Fluid Application and Milling Additional Capabilities Inline mixers impeller spare parts.png
